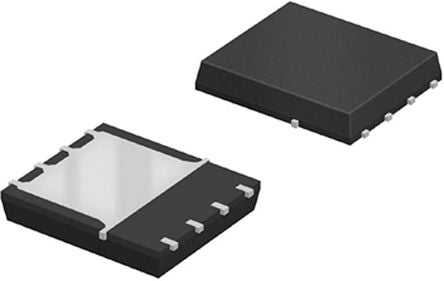

CSD18502Q5B N-Channel MOSFET, 204 A, 40 V NexFET, 8-Pin VSON Texas Instruments [CSD18502Q5B]; 162-8551
0₫
Mã kho: 1628551
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 204 A |
Maximum Drain Source Voltage | 40 V |
Package Type | VSON |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 3.3 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.2V |
Minimum Gate Threshold Voltage | 1.5V |
Maximum Power Dissipation | 3.2 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Series | NexFET |
Length | 6.1mm |
Transistor Material | Si |
Width | 5.1mm |
Maximum Operating Temperature | +150 °C |
Height | 1.05mm |
Typical Gate Charge @ Vgs | 25 nC @ 4.5 V |
Minimum Operating Temperature | -55 °C |
