Discrete Semiconductors > MOSFETs

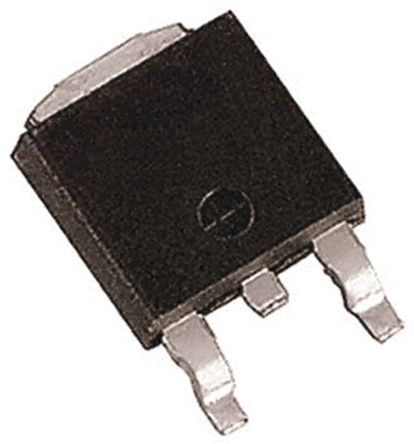

TSM70N900CP ROG N-Channel MOSFET, 4.5 A, 700 V, 3 + Tab-Pin DPAK Taiwan Semi [TSM70N900CP ROG]; 171-3661

0₫
(Giá chưa VAT).
Mã kho: 1713661

Mã nhà sản xuất: TSM70N900CP ROG

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Channel Type N
Maximum Continuous Drain Current 4.5 A
Maximum Drain Source Voltage 700 V
Package Type TO-252
Mounting Type Surface Mount
Pin Count 3 + Tab
Maximum Drain Source Resistance 900 mΩ
Channel Mode Enhancement
Maximum Gate Threshold Voltage 4V
Minimum Gate Threshold Voltage 2V
Maximum Power Dissipation 50 W
Transistor Configuration Single
Maximum Gate Source Voltage ±30 V
Number of Elements per Chip 1
Width 5.8mm
Forward Diode Voltage 1.4V
Minimum Operating Temperature -55 °C
Length 6.5mm
Maximum Operating Temperature +150 °C
Typical Gate Charge @ Vgs 9.7 nC @ 10 V
Height 2.3mm
