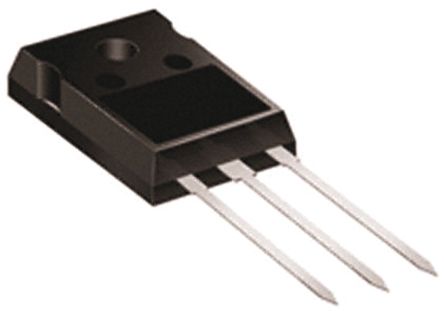

TSM60N380CI C0G N-Channel MOSFET, 11 A, 600 V, 3-Pin ITO-220S Taiwan Semi [TSM60N380CI C0G]; 171-3663
0₫
Mã kho: 1713663
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.458333333333333 |
| Maximum Drain Source Voltage | 600 V |
| Package Type | ITO-220S |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 380 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 33 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 4.6mm |
| Maximum Operating Temperature | +150 °C |
| Height | 15mm |
| Typical Gate Charge @ Vgs | 20.5 nC @ 10 V |
| Forward Diode Voltage | 1.4V |
| Length | 10mm |
