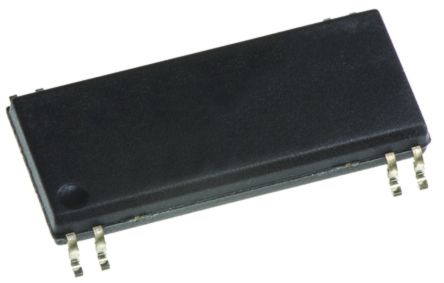

TSM4946DCS RLG N-Channel MOSFET, 4.5 A, 60 V, 8-Pin SOP Taiwan Semi [TSM4946DCS RLG]; 171-3624
0₫
Mã kho: 1713624
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 4.5 A |
Maximum Drain Source Voltage | 60 V |
Package Type | SOP |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 75 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 2.4 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Forward Diode Voltage | 1.2V |
Width | 4mm |
Minimum Operating Temperature | -55 °C |
Length | 5mm |
Maximum Operating Temperature | +150 °C |
Height | 1.5mm |
Typical Gate Charge @ Vgs | 19 nC @ 10 V |
