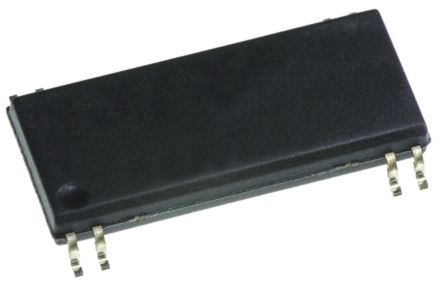

TSM4806CS RLG N-Channel MOSFET, 28 A, 20 V, 8-Pin SOP Taiwan Semi [TSM4806CS RLG]; 171-3715
0₫
Mã kho: 1713715
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 28 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 31 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 0.3V |
| Maximum Power Dissipation | 2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±8 V |
| Number of Elements per Chip | 1 |
| Length | 4.85mm |
| Width | 3.9mm |
| Forward Diode Voltage | 1.2V |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 12.3 nC @ 4.5 V |
| Height | 0.8mm |
| Maximum Operating Temperature | +150 °C |
