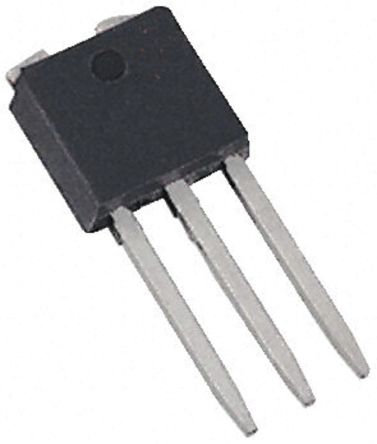

![Taiwan Semiconductor TSM3N80CH C5G 1713709](http://nguyenxuong.com/cdn/shop/products/R1713709-01_377x444.jpg?v=1594318996)
TSM3N80CH C5G N-Channel MOSFET, 3 A, 800 V, 3-Pin IPAK Taiwan Semi [TSM3N80CH C5G]; 171-3709
0₫
Mã kho: 1713709
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.125 |
Maximum Drain Source Voltage | 800 V |
Package Type | TO-251 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 4.2 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 94 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±30 V |
Number of Elements per Chip | 1 |
Width | 2.3mm |
Forward Diode Voltage | 1.5V |
Length | 6.5mm |
Height | 7mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 19 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
