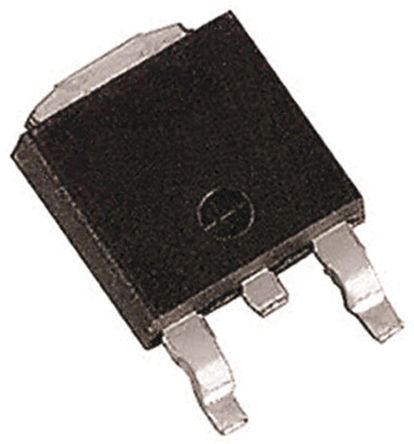

TSM2N100CP ROG N-Channel MOSFET, 1.85 A, 1000 V, 3 + Tab-Pin DPAK Taiwan Semi [TSM2N100CP ROG]; 171-3707
0₫
Mã kho: 1713707
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.85 A |
| Maximum Drain Source Voltage | 1000 V |
| Package Type | TO-252 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 8.5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5.5V |
| Minimum Gate Threshold Voltage | 3.5V |
| Maximum Power Dissipation | 77 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Width | 6.1mm |
| Minimum Operating Temperature | -55 °C |
| Height | 2.3mm |
| Typical Gate Charge @ Vgs | 17 nC @ 10 V |
| Length | 6.6mm |
| Forward Diode Voltage | 1.4V |
| Maximum Operating Temperature | +150 °C |
