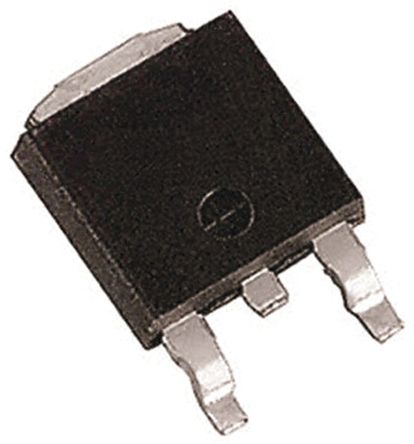

TSM090N03CP ROG N-Channel MOSFET, 55 A, 30 V, 3 + Tab-Pin DPAK Taiwan Semi [TSM090N03CP ROG]; 171-3608
0₫
Mã kho: 1713608
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 55 A |
Maximum Drain Source Voltage | 30 V |
Package Type | TO-252 |
Mounting Type | Surface Mount |
Pin Count | 3 + Tab |
Maximum Drain Source Resistance | 13 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 40 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Width | 5.8mm |
Height | 2.3mm |
Forward Diode Voltage | 1V |
Typical Gate Charge @ Vgs | 7.5 nC @ 4.5 V |
Maximum Operating Temperature | +150 °C |
Length | 6.5mm |
