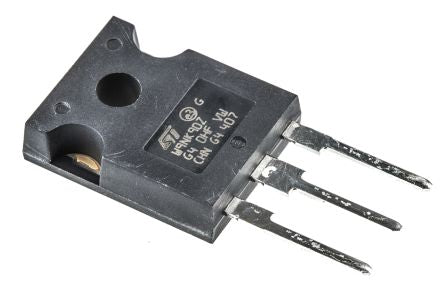

![STMicroelectronics STW9NK90Z 4858623](http://nguyenxuong.com/cdn/shop/products/F4858623-01_444x290.jpg?v=1594025832)
STW9NK90Z N-Channel MOSFET, 8 A, 900 V MDmesh, SuperMESH, 3-Pin TO-247 STMicroelectronics [STW9NK90Z]; 485-8623
0₫
Mã kho: 4858623
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.333333333333333 |
Maximum Drain Source Voltage | 900 V |
Package Type | TO-247 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 1.3 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4.5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 160 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Series | MDmesh, SuperMESH |
Height | 20.15mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 72 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Length | 15.75mm |
Width | 5.15mm |
Transistor Material | Si |
