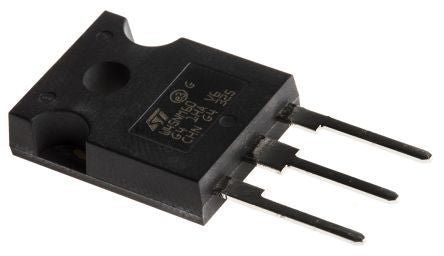

STW45NM60 N-Channel MOSFET, 45 A, 600 V MDmesh, 3-Pin TO-247 STMicroelectronics [STW45NM60]; 714-6800
0₫
Mã kho: 7146800
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 45 A |
Maximum Drain Source Voltage | 600 V |
Package Type | TO-247 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 110 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 417 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Length | 15.75mm |
Maximum Operating Temperature | +150 °C |
Height | 20.15mm |
Typical Gate Charge @ Vgs | 96 nC @ 10 V |
Width | 5.15mm |
Transistor Material | Si |
Series | MDmesh |
Minimum Operating Temperature | -65 °C |
