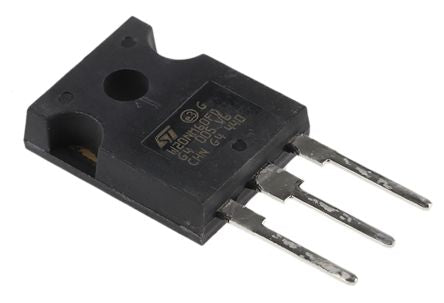

STW20NM60FD N-Channel MOSFET, 20 A, 600 V FDmesh, 3-Pin TO-247 STMicroelectronics [STW20NM60FD]; 103-1996
0₫
Mã kho: 1031996
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 20 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 290 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 214 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Height | 20.15mm |
| Length | 15.75mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 37 nC @ 10 V |
| Series | FDmesh |
| Minimum Operating Temperature | -65 °C |
| Width | 5.15mm |
