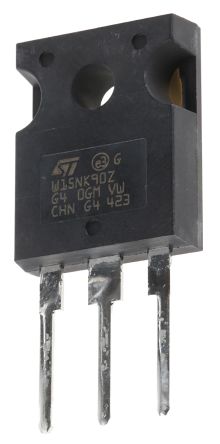

![STMicroelectronics STW15NK90Z 6875257](http://nguyenxuong.com/cdn/shop/products/F6875257-01_220x444.jpg?v=1594015532)
STW15NK90Z N-Channel MOSFET, 15 A, 900 V MDmesh, SuperMESH, 3-Pin TO-247 STMicroelectronics [STW15NK90Z]; 687-5257
0₫
Mã kho: 6875257
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 15 A |
Maximum Drain Source Voltage | 900 V |
Package Type | TO-247 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 550 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4.5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 350 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Series | MDmesh, SuperMESH |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Height | 20.15mm |
Width | 5.15mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 190 nC @ 10 V |
Length | 15.75mm |
