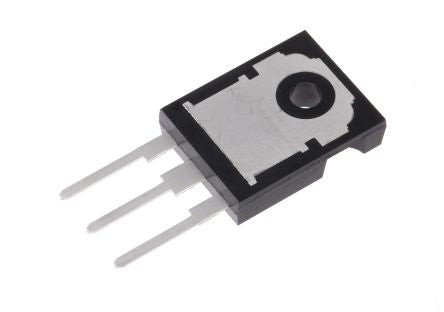

STW10NK80Z N-Channel MOSFET, 9 A, 800 V MDmesh, SuperMESH, 3-Pin TO-247 STMicroelectronics [STW10NK80Z]; 485-8572
0₫
Mã kho: 4858572
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.375 |
| Maximum Drain Source Voltage | 800 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 900 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 160 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 5.15mm |
| Series | MDmesh, SuperMESH |
| Length | 15.75mm |
| Maximum Operating Temperature | +150 °C |
| Height | 20.15mm |
| Typical Gate Charge @ Vgs | 72 nC @ 10 V |
| Transistor Material | Si |
