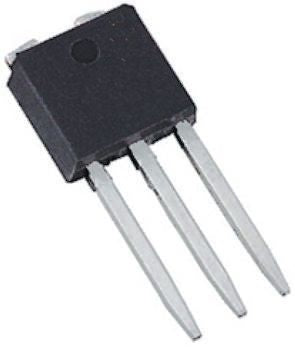

STU7N80K5 N-Channel MOSFET, 6 A, 800 V MDmesh K5, SuperMESH5, 3-Pin IPAK STMicroelectronics [STU7N80K5]; 791-7946
0₫
Mã kho: 7917946
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.25 |
| Maximum Drain Source Voltage | 800 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.2 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 110 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Series | MDmesh K5, SuperMESH5 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 6.6mm |
| Typical Gate Charge @ Vgs | 13.4 nC @ 10 V |
| Width | 2.4mm |
| Height | 6.2mm |
| Transistor Material | Si |
