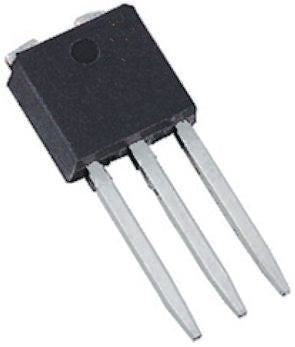

STU10N60M2 N-Channel MOSFET, 7.5 A, 650 V MDmesh M2, 3-Pin IPAK STMicroelectronics [STU10N60M2]; 168-7034
0₫
Mã kho: 1687034
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 7.5 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 600 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 85 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Series | MDmesh M2 |
| Height | 6.2mm |
| Width | 2.4mm |
| Typical Gate Charge @ Vgs | 13.5 nC @ 10 V |
| Length | 6.6mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
