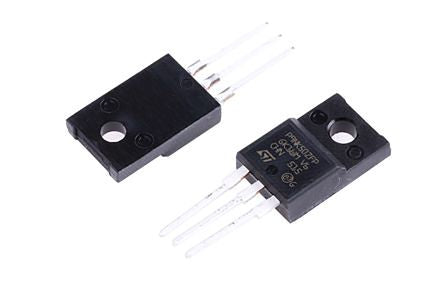

STP9NK50ZFP N-Channel MOSFET, 7.2 A, 500 V MDmesh, SuperMESH, 3-Pin TO-220FP STMicroelectronics [STP9NK50ZFP]; 920-8701
0₫
Mã kho: 9208701
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 7.2 A |
Maximum Drain Source Voltage | 500 V |
Package Type | TO-220FP |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 850 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4.5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 30 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 32 nC @ 10 V |
Series | MDmesh, SuperMESH |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Length | 10.4mm |
Width | 4.6mm |
Height | 9.3mm |
Transistor Material | Si |
