![STMicroelectronics STP60NF06L 4857816](http://nguyenxuong.com/cdn/shop/products/F4857816-01_444x222.jpg?v=1594161854)

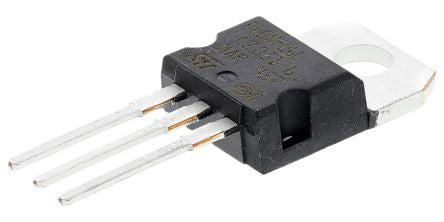

STP60NF06L N-Channel MOSFET, 60 A, 60 V STripFET II, 3-Pin TO-220 STMicroelectronics [STP60NF06L]; 485-7816
0₫
Mã kho: 4857816
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 60 A |
Maximum Drain Source Voltage | 60 V |
Package Type | TO-220 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 14 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 110 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -15 V, +15 V |
Number of Elements per Chip | 1 |
Height | 9.15mm |
Typical Gate Charge @ Vgs | 35 nC @ 4.5 V |
Minimum Operating Temperature | -65 °C |
Series | STripFET II |
Transistor Material | Si |
Length | 10.4mm |
Maximum Operating Temperature | +175 °C |
Width | 4.6mm |
