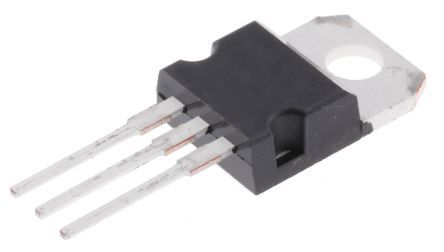

STP26N60DM6, MOSFETs [STP26N60DM6]; 192-4661
0₫
Mã kho: 1924661
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 15 A |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 195 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.75V |
| Minimum Gate Threshold Voltage | 3.25V |
| Maximum Power Dissipation | 110 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±25 V |
| Number of Elements per Chip | 1 |
| Height | 15.75mm |
| Width | 4.6mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.6V |
| Typical Gate Charge @ Vgs | 24 nC @ 10 V |
| Length | 10.4mm |
