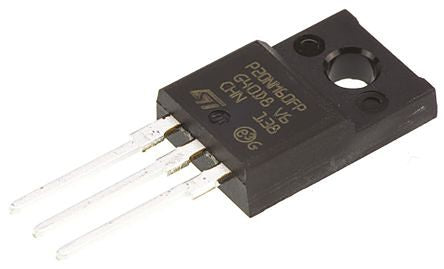

STP20NM60FP N-Channel MOSFET, 20 A, 600 V MDmesh, 3-Pin TO-220FP STMicroelectronics [STP20NM60FP]; 920-8739
0₫
Mã kho: 9208739
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 20 A |
Maximum Drain Source Voltage | 600 V |
Package Type | TO-220FP |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 290 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 45 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -65 °C |
Series | MDmesh |
Transistor Material | Si |
Width | 4.6mm |
Height | 9.3mm |
Length | 10.4mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 39 nC @ 10 V |
