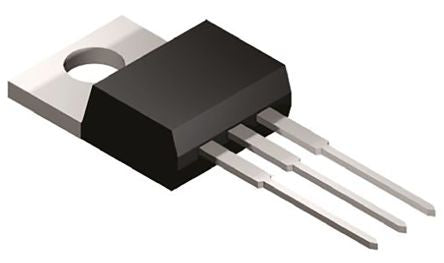

STP200NF04 N-Channel MOSFET, 120 A, 40 V STripFET, 3-Pin TO-220 STMicroelectronics [STP200NF04]; 761-0064
0₫
Mã kho: 7610064
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 120 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 3.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 310 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Height | 15.75mm |
| Typical Gate Charge @ Vgs | 170 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Series | STripFET |
| Transistor Material | Si |
| Width | 4.6mm |
| Length | 10.4mm |
