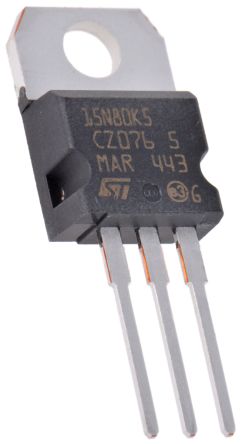

STP15N80K5 N-Channel MOSFET, 14 A, 800 V MDmesh K5, SuperMESH5, 3-Pin TO-220 STMicroelectronics [STP15N80K5]; 168-8064
0₫
Mã kho: 1688064
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 14 A |
Maximum Drain Source Voltage | 800 V |
Package Type | TO-220 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 375 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 190 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Series | MDmesh K5, SuperMESH5 |
Height | 15.75mm |
Width | 4.6mm |
Length | 10.4mm |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 32 nC @ 10 V |
