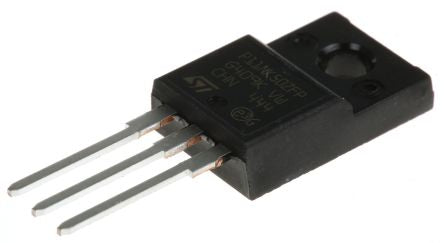

STP11NK50ZFP N-Channel MOSFET, 10 A, 500 V MDmesh, SuperMESH, 3-Pin TO-220FP STMicroelectronics [STP11NK50ZFP]; 168-6214
0₫
Mã kho: 1686214
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.416666666666667 |
| Maximum Drain Source Voltage | 500 V |
| Package Type | TO-220FP |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 520 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 30 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Height | 9.3mm |
| Series | MDmesh, SuperMESH |
| Width | 4.6mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 49 nC @ 10 V |
| Transistor Material | Si |
| Length | 10.4mm |
