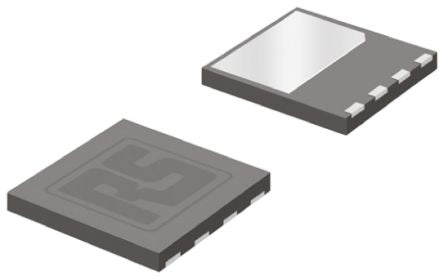

STL57N65M5 N-Channel MOSFET, 22 A, 710 V MDmesh M5, 5-Pin PowerFLAT HV STMicroelectronics [STL57N65M5]; 165-6680
0₫
Mã kho: 1656680
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 22 A |
| Maximum Drain Source Voltage | 710 V |
| Package Type | PowerFLAT HV |
| Mounting Type | Surface Mount |
| Pin Count | 5 |
| Maximum Drain Source Resistance | 69 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 2.8 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Height | 0.95mm |
| Width | 8mm |
| Series | MDmesh M5 |
| Maximum Operating Temperature | +150 °C |
| Length | 8mm |
| Typical Gate Charge @ Vgs | 96 nC @ 10 V |
| Transistor Material | Si |
