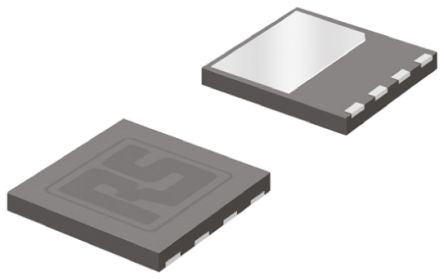

STL45N65M5 N-Channel MOSFET, 22 A, 710 V MDmesh M5, 5-Pin PowerFLAT HV STMicroelectronics [STL45N65M5]; 165-6619
0₫
Mã kho: 1656619
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 22 A |
Maximum Drain Source Voltage | 710 V |
Package Type | PowerFLAT HV |
Mounting Type | Surface Mount |
Pin Count | 5 |
Maximum Drain Source Resistance | 86 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 2.8 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 82 nC @ 10 V |
Width | 8mm |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Series | MDmesh M5 |
Height | 0.95mm |
Length | 8mm |
