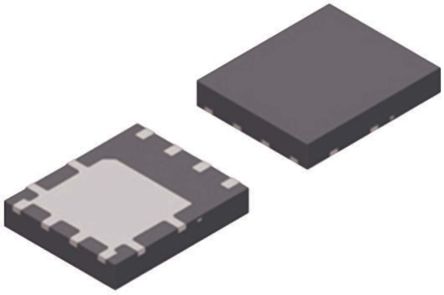

STL42P6LLF6 P-Channel MOSFET, 42 A, 60 V STripFET, 8-Pin PowerFLAT STMicroelectronics [STL42P6LLF6]; 876-5685
0₫
Mã kho: 8765685
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 42 A |
Maximum Drain Source Voltage | 60 V |
Package Type | PowerFLAT |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 34 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 100 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Forward Diode Voltage | 1.1V |
Series | STripFET |
Length | 6.35mm |
Typical Gate Charge @ Vgs | 30 nC @ 4.5 V |
Maximum Operating Temperature | +175 °C |
Width | 5.4mm |
Transistor Material | Si |
Height | 0.95mm |
