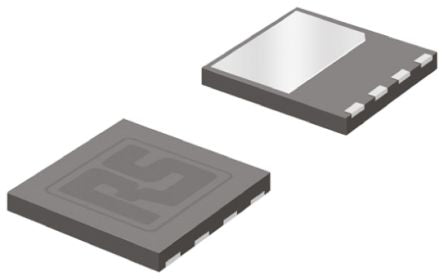

![STMicroelectronics STL36N55M5 9208714](http://nguyenxuong.com/cdn/shop/products/R7832902-01_444x280.jpg?v=1594093303)
STL36N55M5 N-Channel MOSFET, 22 A, 600 V MDmesh M5, 5-Pin PowerFLAT HV STMicroelectronics [STL36N55M5]; 920-8714
0₫
Mã kho: 9208714
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 22 A |
Maximum Drain Source Voltage | 600 V |
Package Type | PowerFLAT HV |
Mounting Type | Surface Mount |
Pin Count | 5 |
Maximum Drain Source Resistance | 90 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 2.8 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Length | 8mm |
Typical Gate Charge @ Vgs | 62 nC @ 10 V |
Series | MDmesh M5 |
Maximum Operating Temperature | +150 °C |
Width | 8mm |
Height | 0.95mm |
Transistor Material | Si |
