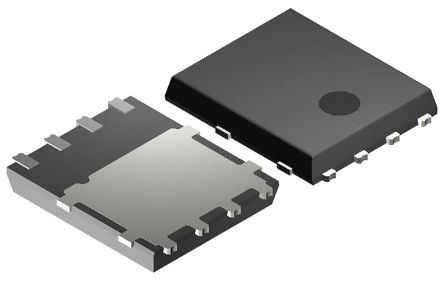

STL190N4F7AG N-Channel MOSFET, 120 A, 40 V STripFET F7, 8-Pin PowerFLAT STMicroelectronics [STL190N4F7AG]; 124-1153
0₫
Mã kho: 1241153
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 120 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | PowerFLAT |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 127 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Height | 0.95mm |
| Width | 6.1mm |
| Series | STripFET F7 |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +175 °C |
| Length | 5.4mm |
| Typical Gate Charge @ Vgs | 41 nC @ 10 V |
| Transistor Material | Si |
