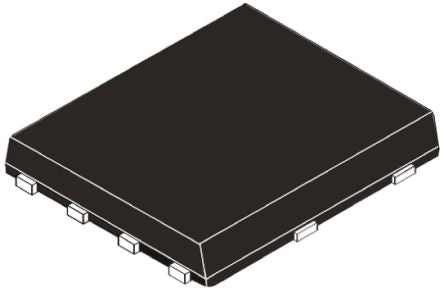

STL18N65M5 N-Channel MOSFET, 15 A, 710 V MDmesh M5, 8-Pin PowerFLAT STMicroelectronics [STL18N65M5]; 920-6617
0₫
Mã kho: 9206617
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 15 A |
| Maximum Drain Source Voltage | 710 V |
| Package Type | PowerFLAT |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 240 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 57 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Length | 5.4mm |
| Maximum Operating Temperature | +150 °C |
| Series | MDmesh M5 |
| Typical Gate Charge @ Vgs | 31 nC @ 10 V |
| Height | 1mm |
| Width | 6.35mm |
| Transistor Material | Si |
