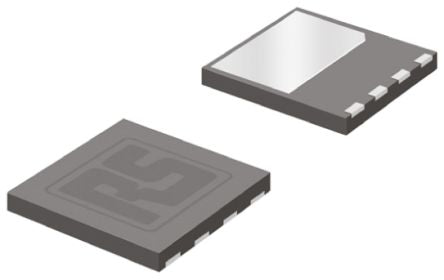

STL17N65M5 N-Channel MOSFET, 10 A, 650 V MDmesh M5, 5-Pin PowerFLAT HV STMicroelectronics [STL17N65M5]; 783-3129
0₫
Mã kho: 7833129
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.416666666666667 |
Maximum Drain Source Voltage | 650 V |
Package Type | PowerFLAT HV |
Mounting Type | Surface Mount |
Pin Count | 5 |
Maximum Drain Source Resistance | 374 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 3 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Length | 8mm |
Height | 0.95mm |
Width | 8mm |
Maximum Operating Temperature | +150 °C |
Series | MDmesh M5 |
