STH80N10F7-2 N-Channel MOSFET, 80 A, 100 V STripFET H7, 3-Pin H2PAK-2 STMicroelectronics [STH80N10F7-2]; 168-7108
0₫
Mã kho: 1687108
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 80 A |
| Maximum Drain Source Voltage | 100 V |

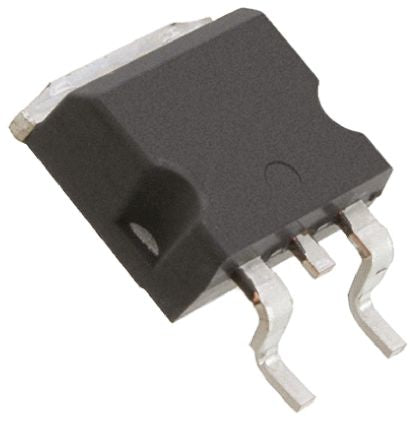

| Package Type | H2PAK-2 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 9.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 110 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 45 nC @ 10 V |
| Length | 10.4mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +175 °C |
| Series | STripFET H7 |
| Minimum Operating Temperature | -55 °C |
| Height | 4.8mm |
| Width | 9.17mm |
