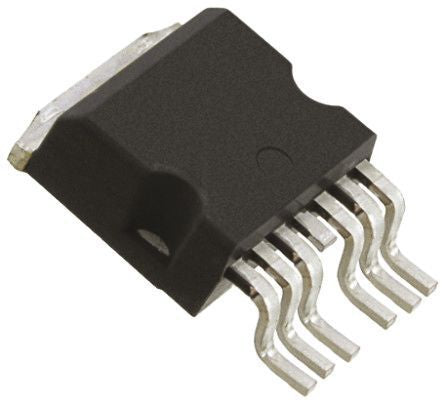

STH410N4F7-6AG N-Channel MOSFET, 200 A, 40 V STripFET F7, 6+Tab-Pin H2PAK STMicroelectronics [STH410N4F7-6AG]; 111-6467
0₫
Mã kho: 1116467
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 200 A |
Maximum Drain Source Voltage | 40 V |
Package Type | H2PAK |
Mounting Type | Surface Mount |
Pin Count | 6 + Tab |
Maximum Drain Source Resistance | 1.1 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4.5V |
Minimum Gate Threshold Voltage | 2.5V |
Maximum Power Dissipation | 365 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Series | STripFET F7 |
Minimum Operating Temperature | -55 °C |
Width | 10.4mm |
Height | 4.8mm |
Typical Gate Charge @ Vgs | 141 nC @ 10 V |
Transistor Material | Si |
Forward Diode Voltage | 1.3V |
Length | 8.9mm |
Maximum Operating Temperature | +175 °C |
