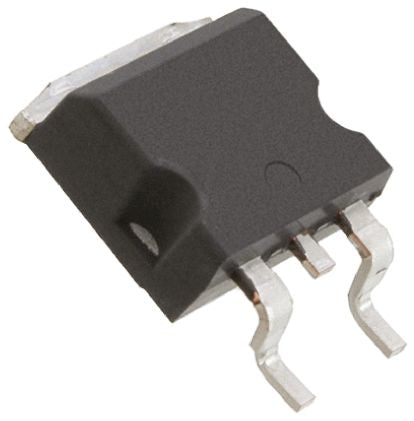

![STMicroelectronics STH320N4F6-2 7917680](http://nguyenxuong.com/cdn/shop/products/H2PAK-02_621e2380-53a3-4139-8626-ce14b8cba3d1_414x422.jpg?v=1594246001)
STH320N4F6-2 N-Channel MOSFET, 200 A, 40 V DeepGate, STripFET, 3-Pin H2PAK STMicroelectronics [STH320N4F6-2]; 791-7680
0₫
Mã kho: 7917680
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 200 A |
Maximum Drain Source Voltage | 40 V |
Package Type | H2PAK |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 1.3 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 300 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Series | DeepGate, STripFET |
Maximum Operating Temperature | +175 °C |
Height | 4.8mm |
Typical Gate Charge @ Vgs | 240 nC @ 10 V |
Length | 15.8mm |
Transistor Material | Si |
Width | 10.4mm |
