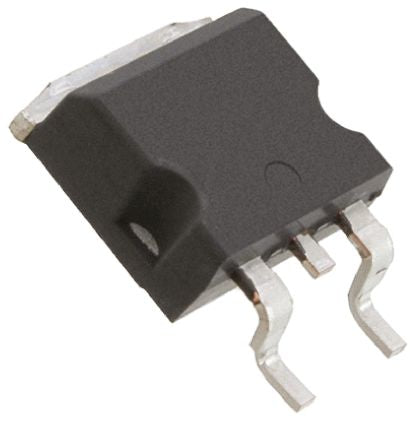

STH140N8F7-2 N-Channel MOSFET, 90 A, 80 V STripFET H7, 3-Pin H2PAK STMicroelectronics [STH140N8F7-2]; 168-7102
0₫
Mã kho: 1687102
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 90 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | H2PAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 200 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Series | STripFET H7 |
| Width | 15.8mm |
| Height | 4.8mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 96 nC @ 10 V |
| Transistor Material | Si |
| Length | 10.4mm |
