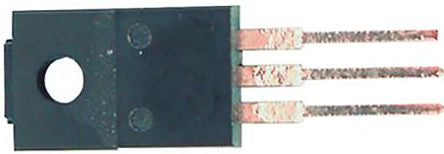

STF9NM60N N-Channel MOSFET, 6.5 A, 600 V MDmesh, 3-Pin TO-220FP STMicroelectronics [STF9NM60N]; 761-2868
0₫
Mã kho: 7612868
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 6.5 A |
Maximum Drain Source Voltage | 600 V |
Package Type | TO-220FP |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 745 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 25 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Width | 4.6mm |
Height | 16.4mm |
Length | 10.4mm |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Series | MDmesh |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 17.4 nC @ 10 V |
