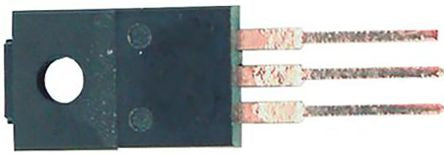

![STMicroelectronics STF7N80K5 1687062](http://nguyenxuong.com/cdn/shop/products/R7919324-01_444x154.jpg?v=1594023218)
STF7N80K5 N-Channel MOSFET, 6 A, 800 V MDmesh K5, SuperMESH5, 3-Pin TO-220FP STMicroelectronics [STF7N80K5]; 168-7062
0₫
Mã kho: 1687062
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.25 |
Maximum Drain Source Voltage | 800 V |
Package Type | TO-220FP |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 1.2 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 25 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Height | 16.4mm |
Width | 4.6mm |
Series | MDmesh K5, SuperMESH5 |
Maximum Operating Temperature | +150 °C |
Length | 10.6mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 13.4 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
