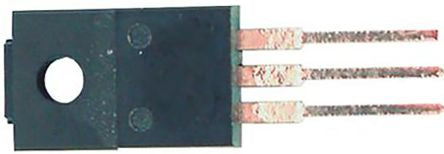

STF16N65M5 N-Channel MOSFET, 12 A, 650 V MDmesh M5, 3-Pin TO-220FP STMicroelectronics [STF16N65M5]; 168-6694
0₫
Mã kho: 1686694
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0 |
Maximum Drain Source Voltage | 650 V |
Package Type | TO-220FP |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 299 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 25 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | +25 V |
Number of Elements per Chip | 1 |
Width | 4.6mm |
Height | 9.3mm |
Series | MDmesh M5 |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Length | 10.4mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 31 nC @ 10 V |
