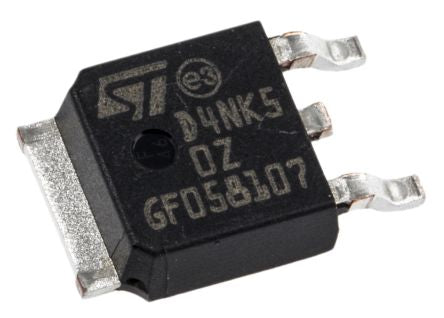

STD4NK50ZT4 N-Channel MOSFET, 3 A, 500 V MDmesh, SuperMESH, 3-Pin DPAK STMicroelectronics [STD4NK50ZT4]; 687-5153
0₫
Mã kho: 6875153
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.125 |
| Maximum Drain Source Voltage | 500 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.7 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 45 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Height | 2.4mm |
| Typical Gate Charge @ Vgs | 12 nC @ 10 V |
| Length | 6.6mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Series | MDmesh, SuperMESH |
| Width | 6.2mm |
| Transistor Material | Si |
