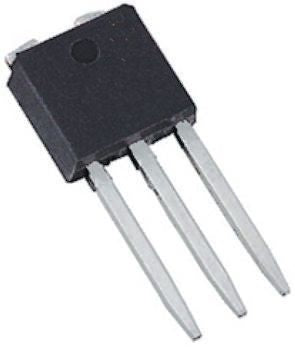

STD3NK80Z-1 N-Channel MOSFET, 2.5 A, 800 V MDmesh, SuperMESH, 3-Pin IPAK STMicroelectronics [STD3NK80Z-1]; 168-6701
0₫
Mã kho: 1686701
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 2.5 A |
Maximum Drain Source Voltage | 800 V |
Package Type | IPAK (TO-251) |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 4.5 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4.5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 70 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 19 nC @ 10 V |
Length | 6.6mm |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Series | MDmesh, SuperMESH |
Height | 6.2mm |
Width | 2.4mm |
