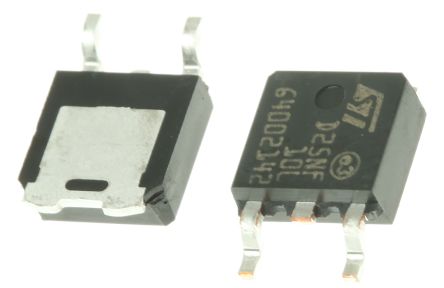

STD25NF10LT4 N-Channel MOSFET, 25 A, 100 V STripFET II, 3-Pin DPAK STMicroelectronics [STD25NF10LT4]; 687-5068
0₫
Mã kho: 6875068
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 25 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 35 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 100 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Height | 2.4mm |
| Typical Gate Charge @ Vgs | 38 nC @ 5 V |
| Minimum Operating Temperature | -55 °C |
| Series | STripFET II |
| Length | 6.6mm |
| Width | 6.2mm |
| Transistor Material | Si |
