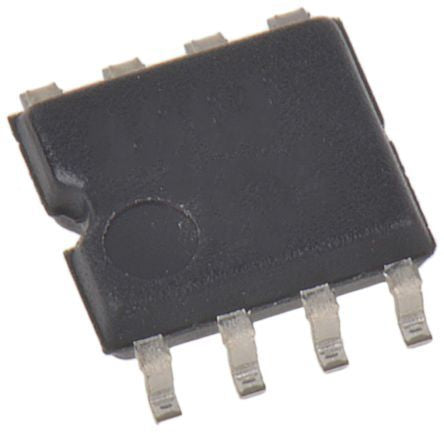

SH8K37GZETB Dual N-Channel MOSFET, 5.5 A, 60 V SH8K37, 8-Pin SOP ROHM [SH8K37GZETB]; 177-6726
by ROHM
0₫
Mã kho: 1776726
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 5.5 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 46 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.7V |
| Minimum Gate Threshold Voltage | 1.3V |
| Maximum Power Dissipation | 2 W |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 2 |
| Width | 4.05mm |
| Minimum Operating Temperature | -55 °C |
| Series | SH8K37 |
| Length | 5.2mm |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 9.7 nC @ 5 V |
| Height | 1.6mm |
