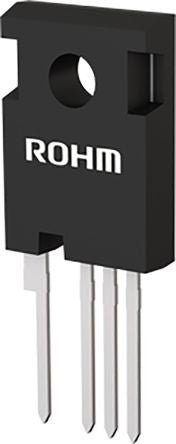

650V N-ch SiC Trench MOSFET in 4pin Pack [SCT3030ARC14]; 191-8787
by ROHM
0₫
Mã kho: 1918787
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 70 A |
Maximum Drain Source Voltage | 650 V |
Package Type | TO-247 |
Mounting Type | Through Hole |
Pin Count | 4 |
Maximum Drain Source Resistance | 39 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5.6V |
Minimum Gate Threshold Voltage | 2.7V |
Maximum Power Dissipation | 262 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | 22 V dc |
Number of Elements per Chip | 1 |
Transistor Material | SiC |
Typical Gate Charge @ Vgs | 104 nC @ 18V |
Maximum Operating Temperature | +175 °C |
