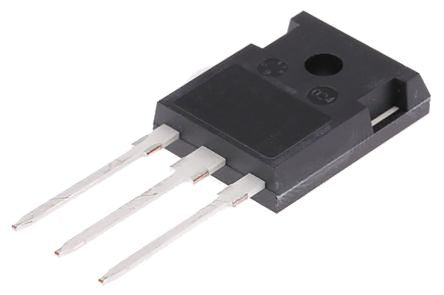

SCT2280KEC SiC N-Channel MOSFET, 14 A, 1200 V SCT2280KE, 3-Pin TO-247 ROHM [SCT2280KEC]; 124-6854
by ROHM
0₫
Mã kho: 1246854
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 14 A |
| Maximum Drain Source Voltage | 1200 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 388 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 1.6V |
| Maximum Power Dissipation | 108 W |
| Maximum Gate Source Voltage | -6 V, +22 V |
| Number of Elements per Chip | 1 |
| Series | SCT2280KE |
| Maximum Operating Temperature | +175 °C |
| Length | 20.95mm |
| Forward Diode Voltage | 4V |
| Transistor Material | SiC |
| Width | 15.9mm |
| Height | 5.03mm |
| Typical Gate Charge @ Vgs | 36 nC @ 18 V |
