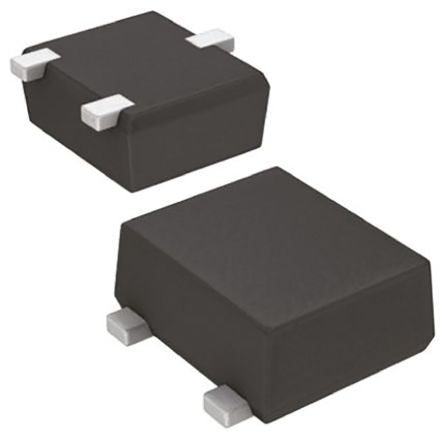

RZF013P01TL P-Channel MOSFET, 1.3 A, 12 V RZF013P01, 3-Pin SOT-323T ROHM [RZF013P01TL]; 124-6844
by ROHM
0₫
Mã kho: 1246844
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 1.3 A |
Maximum Drain Source Voltage | 12 V |
Package Type | SOT-323T |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 1.06 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1V |
Minimum Gate Threshold Voltage | 0.3V |
Maximum Power Dissipation | 800 mW |
Maximum Gate Source Voltage | -10 V, +10 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 2.4 nC @ 4.5 V |
Minimum Operating Temperature | -55 °C |
Series | RZF013P01 |
Width | 1.8mm |
Length | 2.1mm |
Height | 0.82mm |
Maximum Operating Temperature | +150 °C |
Forward Diode Voltage | 1.2V |
