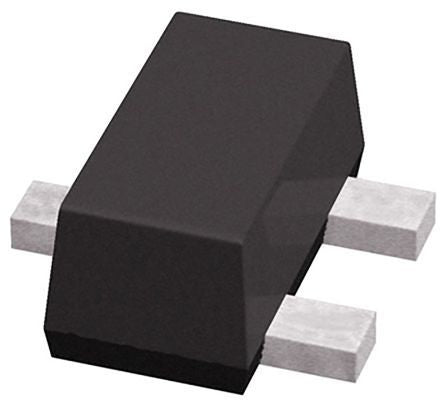

RU1C001UNTCL N-Channel MOSFET, 100 mA, 20 V RU1C001UN, 3-Pin SOT-323FL ROHM [RU1C001UNTCL]; 124-6834
by ROHM
0₫
Mã kho: 1246834
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-323FL |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 18 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 0.3V |
| Maximum Power Dissipation | 150 mW |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Height | 1mm |
| Series | RU1C001UN |
| Minimum Operating Temperature | -55 °C |
| Width | 1.35mm |
| Maximum Operating Temperature | +150 °C |
| Length | 2.1mm |
