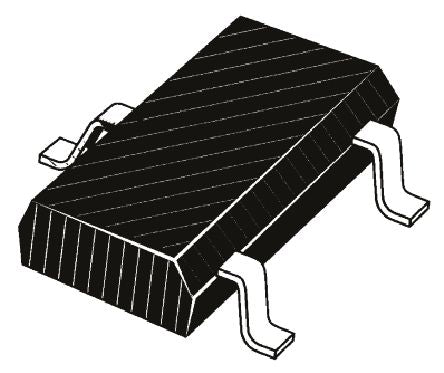

RTR020N05TL N-Channel MOSFET, 8 A, 45 V, 3-Pin TSMT ROHM [RTR020N05TL]; 826-7790
by ROHM
0₫
Mã kho: 8267790
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.0833333333333333 |
| Maximum Drain Source Voltage | 45 V |
| Package Type | TSMT |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 250 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Width | 1.6mm |
| Length | 2.9mm |
| Typical Gate Charge @ Vgs | 2.9 nC @ 4.5 V |
| Height | 0.9mm |
| Transistor Material | Si |
