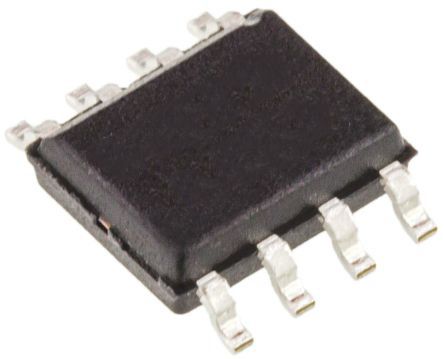

RS1E321GNTB1 N-Channel MOSFET, 80 A, 30 V RS1E321GN, 8-Pin HSOP ROHM [RS1E321GNTB1]; 183-5485
by ROHM
0₫
Mã kho: 1835485
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 80 A |
Maximum Drain Source Voltage | 30 V |
Package Type | HSOP |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 2.9 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 34 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Width | 5mm |
Typical Gate Charge @ Vgs | 42.8 nC @ 10 V |
Forward Diode Voltage | 1.2V |
Minimum Operating Temperature | -55 °C |
Length | 5.8mm |
Series | RS1E321GN |
Maximum Operating Temperature | 150 °C |
Height | 1.05mm |
