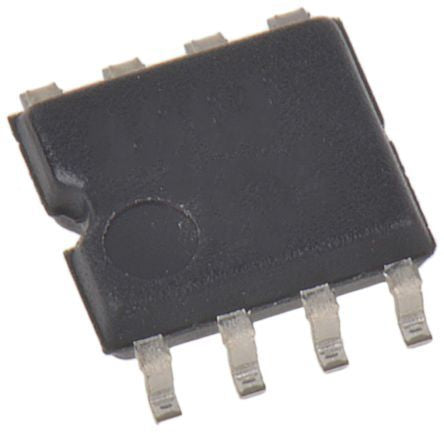

RRH140P03GZETB P-Channel MOSFET, 14 A, 30 V RRH140P03, 8-Pin SOP ROHM [RRH140P03GZETB]; 171-9789
by ROHM
0₫
Mã kho: 1719789
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 14 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 10.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -1 V |
| Number of Elements per Chip | 1 |
| Width | 4.05mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Length | 5.2mm |
| Height | 1.6mm |
| Typical Gate Charge @ Vgs | 9.2 nC @ 5 V, 150 nC @ 10 V |
| Series | RRH140P03 |
| Minimum Operating Temperature | -55 °C |
