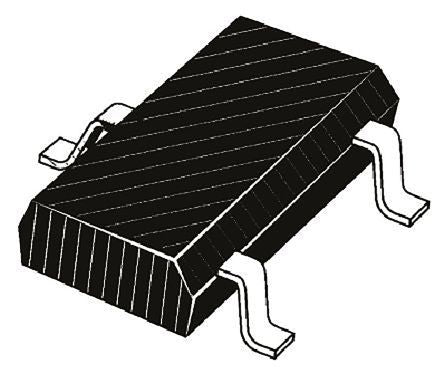

RQ5P010SNTL N-Channel MOSFET, 1 A, 100 V RSR010N10, 3-Pin SOT-346T ROHM [RQ5P010SNTL]; 124-6826
by ROHM
0₫
Mã kho: 1246826
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.0416666666666667 |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOT-346T (SC-96) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 580 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 1 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Series | RSR010N10 |
| Width | 1.8mm |
| Forward Diode Voltage | 1.2V |
| Height | 0.95mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 3.5 nC @ 5 V |
| Length | 3mm |
| Minimum Operating Temperature | -55 °C |
