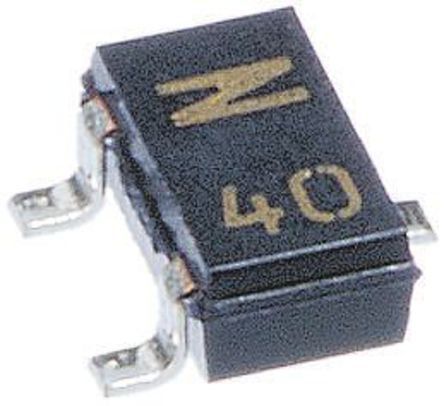

RQ5E070BNTCL N-Channel MOSFET, 7 A, 30 V RQ5E070BN, 3-Pin SOT-346T ROHM [RQ5E070BNTCL]; 133-3301
by ROHM
0₫
Mã kho: 1333301
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.291666666666667 |
Maximum Drain Source Voltage | 30 V |
Package Type | SOT-346T (SC-96) |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 20.4 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 1 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Forward Diode Voltage | 1.2V |
Maximum Operating Temperature | +150 °C |
Length | 3mm |
Typical Gate Charge @ Vgs | 23 nC @ 10 V |
Height | 0.95mm |
Width | 1.8mm |
Series | RQ5E070BN |
