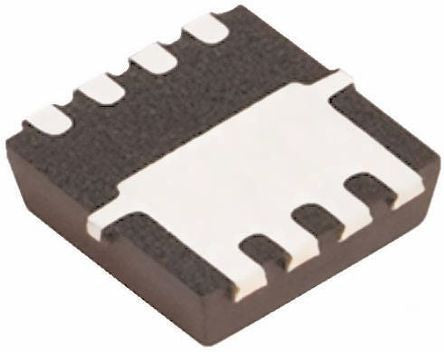

RQ3L050GNTB N-Channel MOSFET, 12 A, 60 V RQ3L050GN, 8-Pin HSMT ROHM [RQ3L050GNTB]; 133-3297
by ROHM
0₫
Mã kho: 1333297
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | HSMT |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 86 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 14.8 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 3.1mm |
| Maximum Operating Temperature | +150 °C |
| Length | 3.3mm |
| Forward Diode Voltage | 1.2V |
| Series | RQ3L050GN |
| Height | 0.85mm |
| Typical Gate Charge @ Vgs | 5.3 nC @ 10 V |
